Drum Filter Cart

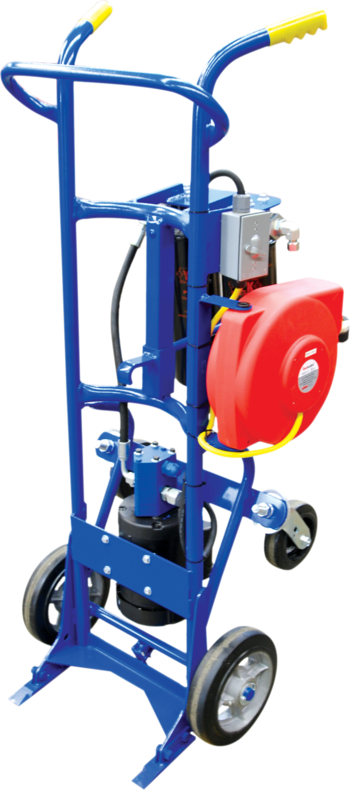

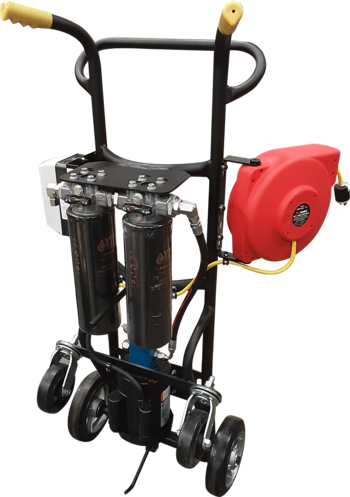

D Series Drum Filter Cart
All-in-one convenience is what the DC-D Drum filter cart is all about. The simple practicality of this cart allows the operator to dispense and filter oil out of a 55 gallon drum on wheels. A magnetic kickstand adds stability and ensures the drum will not tip over. The drum filter cart has ability to filter oil viscosities up to 600cSt (ISO VG 680) at 100°F within ambient temperature ranges of -15°F to 150°F. All Y2K products are 100% customizable upon request.

Overview:
Typical Applications:
  • Pre-filtering new oil
  • Transferring oil
  • Topping off reservoirs
  • Dispensing new oil
Typical Industries:
  • Pulp & Paper
  • Food & Beverage
  • Steel Production/Manufacturing
  • Automotive
  • Power Generation
  • Mining/Construction
  • Petroleum/Chemical Refining
  • General Manufacturing
PDF Icon   D Series Drum Filter Cart
FrameCarbon steel; two hard rubber tires & two swivel casters
PaintMultiple color options available
Motor1HP, 115vac, 60Hz or Pneumatic
Filter HeadsMedium pressure, cast aluminum heads
PumpHeavy duty, cast steel gear pump. Available in 1, 2, 5 and 10 GPM
ConnectionsVarious quick connect options available
Hoses7ft, Clear PVC, steel reinforced hose or hydraulic hose
Power SwitchSealed On/Off power switch
Cord40' retractable electric cord reel
Filter IndicatorsSlide bar indicators trigger at 50psid when elements need to be changed.
Pump ReliefOpens at 150 psi
WeightApprox. 175lbs (will vary depending on options)
DimensionsApprox. 23”L x 21”W x 59”H
Standard Features
Motor
Motor
1HP, 115vac, 60HZ or Pneumatic Air
Pump
Pump
DC-D: Heavy duty, cast steel gear pump with 150PSI internal pump relief; Available Flow Rates: 1, 2, 5 and 10 GPM
DC-M: Aluminum gear pump with 150PSI internal pump relief; Available Flow Rates: 2, 5, and 10 GPM
Elements
Elements
DC-D: Highly Efficient, 5”x 14” β(c)= 2000 or 5”x 14” β(c)= 1000 Filter Elements; Various Particulate and Water Removal Elements Available
DC-M: 5”x 10” β(c) = 1000 Filter Elements; Various Particulate and Water Removal Elements Available
Color
Color
Standard Colors: Blaze Orange, Blue, Black, Red, Yellow & Silver
Not seeing what you need? We have built many unique filter carts for a variety of applications. Based on your unique application needs our experts will design a custom cart.
